The Difference
Perfect Zero® Rigid Mount is a next generation visual alignment solution — designed to align tools or work coordinates on demand. It offers the same ease of use as our Perfect Zero guide bushing and collet-mounted cameras, but with one key advantage: Rigid Mount remains installed in your mill or lathe at all times, streamlining your workflow and boosting productivity. Simply remove the protective cap, jog your machine so the tool or work coordinate is in focus, and confirm or adjust positions in just seconds. It has no exterior moving parts to worry about as you complete precision alignments.
- Use the camera in an instant
- Built-in clearance to avoid collisions
- Easily align, set, and check tools on a lathe or work coordinates on a mill
- Coolant-proof and sealed, with a protective lens.
Set smarter. Run longer.

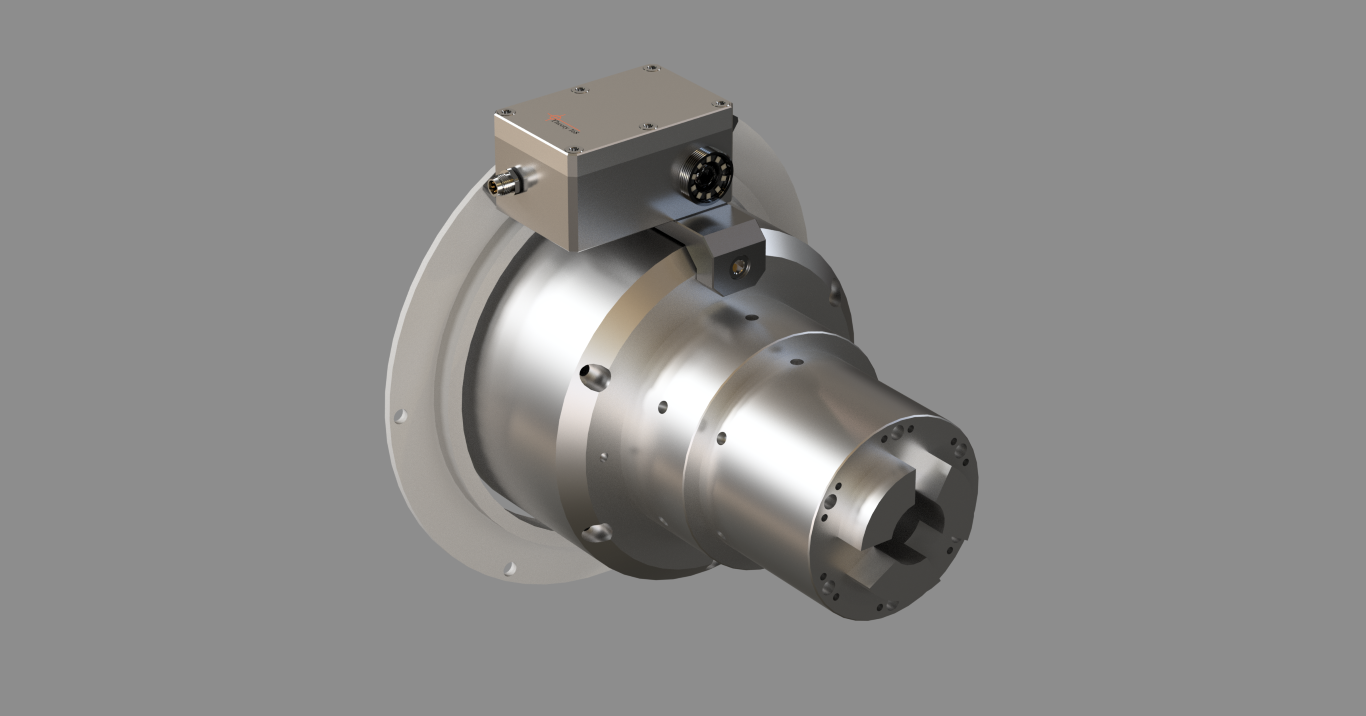

Rigid Mount for Lathes

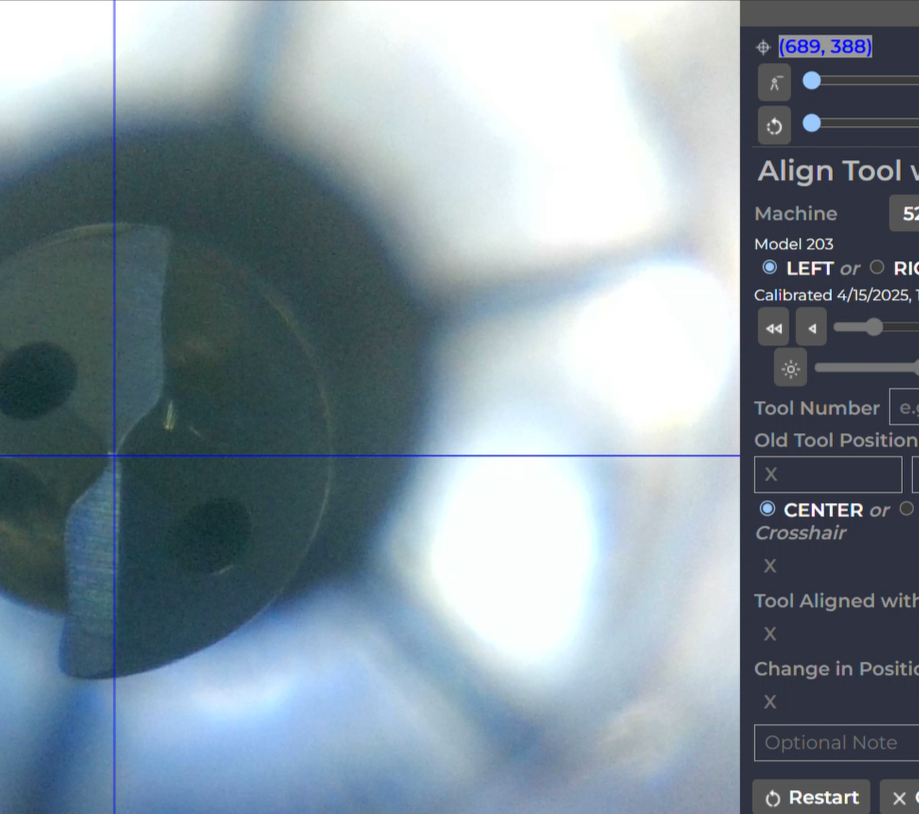

The Rigid Mount camera system delivers precision tool or work coordinate alignment without touching off. On a lathe, operators can visually confirm tool position, check for proper alignment, and inspect edge wear without removing the tool from the machine. Designed for speed, accuracy, and uninterrupted performance.
- Check tool position
- Set tooling
- Check for tool wear
- 4" focus distance from lens to tool
Rigid Mount for Mills

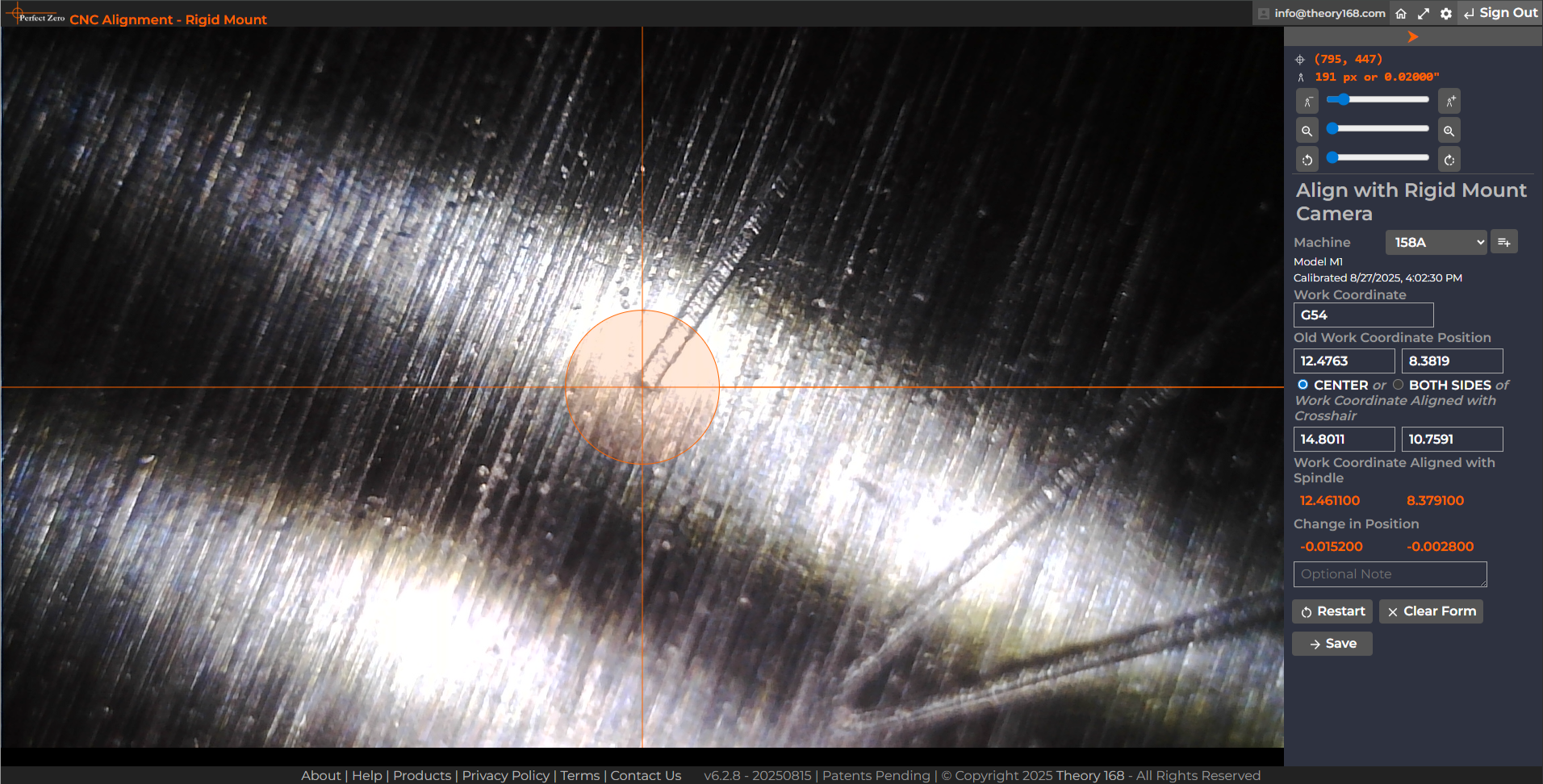

The Perfect Zero Rigid Mount for mills is a permanently installed camera that delivers instant, precise work coordinate alignment directly off the part, eliminating repeated setups, indicating, or probing. With a one-time installation and built-in clearance for safety, it's always ready to use: just remove the cap, focus, and set your coordinates in seconds. For added capability, it can be paired with Part Inspector software to visually check and measure parts in the machine, reducing scrap and saving time while keeping production moving.
- Non-contact visual work coordinate setting
- Optional part inspection
- 4" focus distance from lens to part
One Time Installation
- Install the Perfect Zero Rigid Mount camera using included hardware
- Connect the cable to the unit and route it to the backside of the machine
- Calibrate Rigid Mount camera to the centerline of the spindle
That's it. Your Perfect Zero Rigid Mount is now ready for use.
